Description

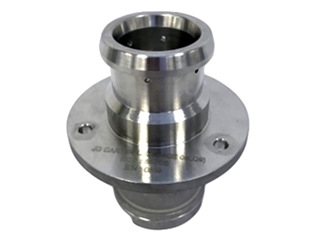

The receptacle installs on the vehicle tank allowing a quick one-motion mating for a simple, secure operation. The receptacle is designed to couple with JC Carter’s 50 GPM Nozzle.
The 50 GPM Nozzle can be used on many different applications in the commercial transport.
This product has R110 Certification
The receptacle installs on the vehicle tank allowing a quick one-motion mating for a simple, secure operation. The receptacle is designed to couple with JC Carter’s 50 GPM Nozzle.
| Fluid compatibility | LN2, LNG, Methane |
|---|---|
| Maximum Working Pressure | 500 PSI (3.48 MPa) |
| Process Connection | 3/4-14 NPT Female Port |
| Operating Temperature | -320°F to +185°F (-195.56°C to +85°C) |
| Nominal Flow | 50 GPM at ≈15 PSI differential |
| Burst Pressure | 2000 PSI (13.79 MPa) |
| Weight | ≈3 lbs |
| Storage Temperature | -60°F to +120°F (-51.1°C to 48.89°C) |
